美标UL认证充电电缆

美洲UL认证充电电缆

参考标准Reference Standard:UL2263

UL档案号.UL File No.:E345899

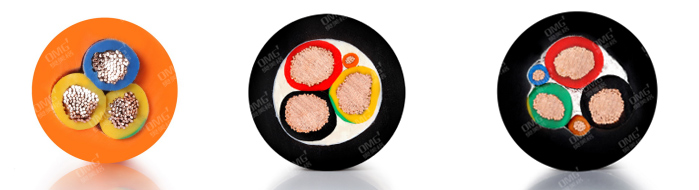

美洲UL认证充电电缆

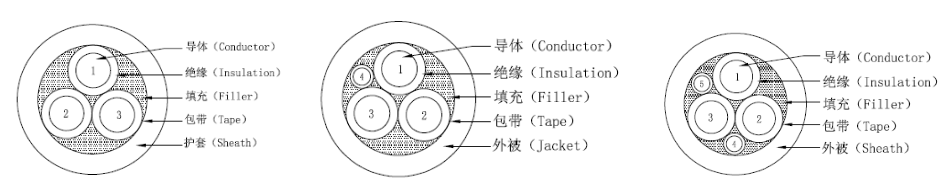

结构Construction 电缆特性 Features
1.导体Conductor 额定温度Rated temperature:-40℃~105℃
  材质Material: 裸铜Bare Copper 额定电压Rated Voltage:300V;600V or 1000V
2.绝缘Insulation 燃烧测试Flame Test: VW-1 Test method Comply with UL 2556
  材质Material: TPE 最小弯曲半径Min: Bending Radius: ≥6*OD
  颜色:黑Black,红red,绿/黄Green/Yellow或其他or other 耐压Dielectric Voltage: 1.5kVac/1min. No Breakdown Test method Comply with UL 2556
3.填充Filler 低温弯曲Cold Bending:-40℃/4h No cracks Test method Comply with UL 2556
  材质Material: PP hemp or cotton yarn 热冲击Hot Shock:150℃/1h No cracks Test method Comply with UL 2556
4.包带Tape 耐油Oil Resistance:IRM902, 60℃/168h Tensile and Elongation ≥70%  Unaged value
  材质Material:无纺布Non-woven fabrics 耐碾压 Crush Resistance:S≤12AWG  4.45kN, 12AWG<S≤2AWG, 11.1kN,  2AWG<S 15.6kN
5.护套Sheath 耐气候Weather Resistance:720hin a xenon arc weatherometer,  No cracks
  材质Material: TPE 环保要求Environmental Requirements:Compliant with RoHS 2.0 and REACH
  颜色Color: 黑色或橙色Black or Orange



美洲UL认证充电电缆



型号
Type
规格
Size
导体绞合外径
Conductor Stranded OD mm Ref.
导体电阻
Max. Conductor resistance mΩ/m@20℃
参考允载电流
Permissible ampacity@20℃ ambient Ref.
完成外径
Over diameter  Ref. mm
包装
Packing M/Reel (Ref.)
600V or 1000V EVE(TPE) 3×16AWG 1.5/1.2 14.1 12A 10.8±0.5 1000m/700#
3×14AWG 1.9/1.2 8.88 16A 11.8±0.5 800m/700#
3×12AWG 2.4/1.2 5.58 23A 14.3±0.5 500m/700#
3×10AWG 3.0/1.2 3.51 32A 15.6±0.5 500m/700#
2×8AWG+10AWG 4.3/3.0 2.23/3.51 46A 20.9±0.8 500m/950#
2×6AWG+8AWG 5.4/4.3 1.40/2.23 63A 23.4±0.8 400m/950#
3×16AWG+1×18AWG 1.5/1.2 14.1/22.4 12A 11.4±0.5 800m/700#
3×14AWG+1×18AWG 1.9/1.2 8.88/22.4 16A1 13.5±0.5 500m/700#
3×12AWG+1×18AWG 2.4/1.2 5.58/22.4 23A 14.5±0.5 500m/700#
3×10AWG+1×18AWG 3.0/1.2 3.51/22.4 32A 15.8±0.6 500m/700#
2×8AWG+10AWG+18AWG 4.3/3.0 2.23/3.51/22.4 46A 20.9±0.8 500m/950#
2×6AWG+8AWG+18AWG 5.4/4.3 1.40/2.23/22.4 63A 23.4±0.8 400m/950#
2×4AWG+6AWG+18AWG 6.6/5.4 0.882/1.4/22.4 75A 27.0±0.9 300m/950#
3×16AWG+2+18AWG 1.5/1.2 3.51/22.4 12A 12.2±0.5 500m/700#
3×14AWG+2+18AWG 1.9/1.2 8.88/22.4 16A 14.1±0.5 500m/700#
3×12AWG+2+18AWG 2.4/1.2 5.58/22.4 23A 15.1±0.6 500m/700#
3×10AWG+2+18AWG 3.0/1.2 3.51/22.4 32A 15.8±0.6 500m/700#
2×8AWG+10AWG+2×18AWG 4.3/3.0 2.23/3.51 46A 20.9±0.8 500m/950#
2×6AWG+8AWG+2×18AWG 5.4/4.3 1.40/2.23 63A 23.4±0.8 400m/950#
2×4AWG+6AWG+2×18AWG 6.6/5.4 0.882/1.4 75A 27.0±0.9 300m/950#
2×2AWG+4AWG+2×18AWG 8.2/6.6 0.555/0.882 100A 30.5±1.0 400m/1200#
2×1/0AWG+2AWG+4×16AWG
10.5/8.2 0.349/0.555 200A 38.0±1.0 250m/1200#
2×3/0AWG+1/0AWG
(2×3/0AWG+4AWG+6X18AWG)
3/0AWG地线最小4AWG
13.05/10.5 0.219/0.349 260A 45.0±1.0 150m/1200#
4X1-0AWG+4AWG+6X18AWG 10.4/6.5 0.351/0.882/23.6 300A/3 45.7±1.2 150m/1200#
300V EVJE(TPE) 3×16AWG 1.5/1.2 3.51/22.4 12A 9.5±0.3 1200m/700#
3×14AWG 1.9/1.2 8.88/22.4 16A 10.2±0.5 1000m/700#
3×12AWG 2.4/1.2 5.58/22.4 23A 11.4±0.5 800m/700#
3×16AWG+1×18AWG 1.5/1.2 3.51/22.4 12A 10.5±0.5 1000m/700#
3×14AWG+1×18AWG 1.9/1.2 8.88/22.4 16A 11.1±0.5 80m/700#
3×12AWG+1×18AWG 2.4/1.2 5.58/22.4 23A 12.2±0.5 500m/700#
3×16AWG+2×18AWG 1.5/1.2 3.51/22.4 12A 11.3±0.5 800m/700#
3×14AWG+2×18AWG 1.9/1.2 8.88/22.4 16A 12.0±0.5 800m/700#
3×12AWG+2×18AWG 2.4/1.2 5.58/22.4 23A 13.1±0.5 500m/700#
信号线根数可以为0~6根,或者更多,信号线导体规格可以为16AWG,18AWG,20AWG,22AWG。



以上产品规格、尺寸、结构可能因为技术进步而有所改变,同类规格可根据客户使用需求进行设计制造。



NACS尼龙电缆

参考标准Reference Standard:UL2263

Certificate Number: E345899

结构Construction

电缆特性 Features

1.导体Conductor

额定温度Rated temperature:-50℃~105℃

  材质Material: 裸铜Bare Copper

额定电压Rated Voltage:1000V

2.绝缘Insulation

导体直流电阻(20°C时)Conductor Resistance(at 20°C):8AWG≤2.23Ω/km;10AWG≤3.51Ω/km;16AWG≤14.1Ω/km;Test method Comply with UL 2556

  材质Material: TPE

15°C绝缘电阻15°C Insulation Resistance8AWG≥34Ω.m;10AWG≥34Ω.m;16AWG≥45Ω.m;Test method Comply with UL 2556

  颜色:黑Black,红red,绿/黄Green/Yellow或其他or other

耐压Dielectric Voltage: 4.0kV AC/1min8AWG,3.0KV AC/1min10AWG), 2.0KV AC/1min16AWG). No Breakdown. Test method Comply with UL 2556

3.填充Filler

线缆折弯半径Bending Radius Min:≥6OD.

  材质Material: PP hemp or cotton yarn

热冲击Hot Shock:150℃/1h No cracks Test method Comply with UL 2556

4.包带Tape

阻燃测试Flame TestFT1.Test method Comply with UL 2556

  材质Material:无纺布Non-woven fabrics

绝缘抗张强度Insulation tensile strengthBefore Aging 5.5Mpa;After Aging136°C/168H)≥75%Original.Test method Comply with UL 2556

5.护套Sheath

绝缘断裂伸长率Insulation ElongationBefore Aging200%;After Aging136°C/168H)≥75%Original.Test method Comply with UL 2556

  材质Material: TPE

护套抗张强度Jacket tensile strengthBefore Aging 8.3Mpa;After Aging136°C/168H)≥75%Original.Test method Comply with UL 2556

  颜色Color: 黑色或橙色Black or Orange

护套断裂伸长率Jacket ElongationBefore Aging200%;After Aging136°C/168H)≥75%Original.Test method Comply with UL 2556



低温弯曲测试Cold Bending Test-40°C/4H,NO Cracking.Test method Comply with UL 2556



热冲击测试Hot Shock Test150°C/1H,NO Cracking.Test method Comply with UL 2556



型号

主线+地线规格

信号线规格

推荐载流

完成外径

OMG EVC 1001

10AGW/2+10AGW

22AGW(20AGW/18AGW/16AGW)0-6

32A

12.0±0.5

OMG EVC 1002

9AGW/2+10AGW

40A

13.8±0.5

OMG EVC 1003

8AGW/2+10AGW

48A

15.0±0.5

OMG EVC 1004

6AGW/2+8AGW

80A

18.9±0.5

OMG EVC 1005

3AGW/4+12AGW(14AGW/10AGW)

18AGW(20AGW/22AGW)0-8

170A(200A)

28.3±1.0

OMG EVC 1006

2AGW/4+12AGW(14AGW/10AGW)

200A(250A)

31.0±1.0

OMG EVC 1007

1/0AGW/4+12AGW(14AGW/10AGW)

300A-350A

36.5±1.0

OMG EVC 1008

4AGW/2+14AGW

120A

21.0±1.0

OMG EVC 1009

1AGW/4+14AGW



250A(300A)

34.0±1.0
