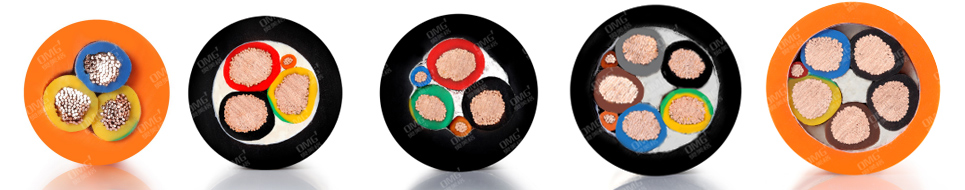

欧州EN50620、IEC62893标准电动汽车充电电缆
参考标准：EN 50620:2017、IEC62893-3：2017、DEKRA K175
证书号：DEKRA 31-112985、DEKRA 31-111496、TUV R50436193 0001、TUV R50436194 0001

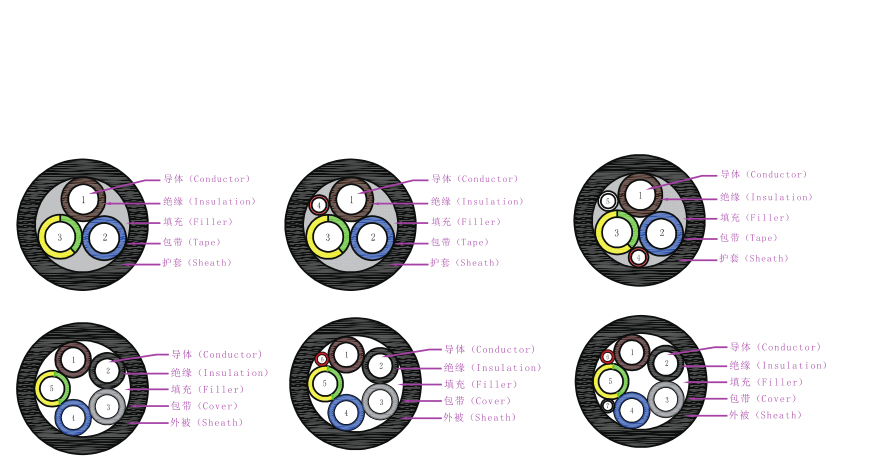

产品描述Product description:
| 结构Construction | 电缆特性 Features |
| 1.导体Conductor | 额定温度Rated temperature ：-40℃～90℃ |
| 材质Material: 裸铜Bare Copper | 额定电压Rated Voltage ： AC 300/500V、 450/750V；DC 1000V |
| 2.绝缘Insulation | 燃烧测试Flame Test ：VW-1 Test method Comply with UL 2556 |
| 材质Material: ERP | 最小弯曲半径Min： Bending Radius: ≥6*OD |
| 颜色Color：棕 Brown，蓝Blue，黄/绿Yellow/Green | 耐压Dielectric Voltage： 2.5kVac/15min. No Breakdown |
| 3.填充Filler | 低温冲击Low temperature impact ：-40℃, No cracks |
| 材质Material: PP Cord | 热冲击Hot Shock：150℃/1h No cracks |
| 4.包带Tape | 耐油Oil Resistance ：IRM902,IRM903,Gasoline 20h OD Variation≤15% No Cracks |
| 材质Material:无纺布Non-woven fabrics | 抗挤压Crush resistance：Sq≤4, crush force≥4KN ; 4≤Sq≤35, crush force≥11KN; |
| 5.护套Sheath | 耐酸碱Resistance to Acid and alkali：168h, Tensile Strength Variation ≤30%; Elongation≥100% |
| 材质Material: TPU | 环保要求Environmental Requirements：Compliant with RoHS and REACH |
| 颜色Color: 黑色Black | |
型号 |
规格 |
导体绞合外径 |
导体电阻 |
参考允载电流 |
无屏蔽 完成外径 |
包装 |
H05BZ-F |
3×1.5mm2+(0～2)×(0.5～0.75)mm2 |
1.6 |
13.3 |
14A |
8.6~9.6 |
800m/700# |
3×2.5mm2+(0～2)×(0.5～0.75)mm2 |
2.1 |
7.98 |
25A |
9.8~10.8 |
800m/700# |
|
H07BZ-F |
3×1.5mm2+(0～2)×(0.5～0.75)mm2 |
1.6 |
13.3 |
14A |
8.8~9.6 |
800m/700# |
3×2.5mm2+(0～2)×(0.5～0.75)mm2 |
2.1 |
7.98 |
25A |
10~10.8 |
800m/700# |
|
3×4.0mm2+(0～2)×(0.5～0.75)mm2 |
2.8 |
4.95 |
35A |
11.5 |
500m/700# |
|
3×6.0mm2+(0～2)×(0.5～0.75)mm2 |
3.5 |
3.30 |
44A |
13.2 |
400m/800# |
|
3×10.0mm2+(0～2)×(0.5～0.75)mm2 |
4.5 |
1.91 |
62A |
16.3 |
500m/950# |
|
3×16mm2+(0～2)×(0.5～0.75)mm2 |
5.7 |
1.21 |
82A |
19 |
500m/700# |
|
5×2.5mm2+(0～2)×(0.5～0.75)mm2 |
2.1 |
7.98 |
20A |
13.5 |
500m/950# |
|
5×4.0mm2+(0～2)×(0.5～0.75)mm2 |
2.8 |
4.95 |
30A |
15 |
400m/950# |
|
5×6.0mm2+(0～2)×(0.5～0.75)mm2 |
3.5 |
3.30 |
38A |
16.8 |
300m/950# |
|
5×10.0mm2+(0～2)×(0.5～0.75)mm2 |
4.5 |
1.91 |
54A |
20 |
300m/1200# |
|
5×16mm2+(0～2)×(0.5～0.75)mm2 |
5.7 |
1.21 |
71A |
23.5 |
800m/700# |
|
5×25mm2+(0～2)×(0.5～0.75)mm2 |
7.2 |
0.78 |
94A |
29 |
800m/700# |
|
5×35mm2+(0～2)×(0.5～0.75)mm2 |
8.4 |
0.554 |
117A |
32.8 |
500m/700# |
以上产品规格、尺寸、结构可能因为技术进步而有所改变，同类规格可根据客户使用需求进行设计制造。
TUV认证交流弹簧充电电缆EN50620和IEC62893弹簧线
证书号：R 50436193 0002
Spring cable |
规格Size |
导体绞合外径 Conductor Stranded OD Ref. mm |
导体电阻 Max. Conductor resistance mΩ/m@20℃ |
参考允载电流 Permissible ampacity@20℃ ambient Ref. |
无屏蔽完成外径 Non-shielded Over diameter mm Ref. |
包装 Packing M/Reel(Ref.) |
EVC H05BZ5H8-F Extensible 62893 IEC 121 |
3×1.5mm2+(0～6)×(0.5～1.0)mm2 |
1.6 |
13.3 |
10A |
10.0 |
TBD |
3×2.5mm2+(0～6)×(0.5～1.0)mm2 |
2.1 |
7.98 |
16A |
11.2 |
TBD |
|
EVC H05BZ5H8-F Extensible 62893 IEC 121
|
3×1.5mm2+(0～6)×(0.5～1.0)mm2 |
1.6 |
13.3 |
10A |
10.0 |
TBD |
3×2.5mm2+(0～6)×(0.5～1.0)mm2 |
2.1 |
7.98 |
16A |
11.2 |
TBD |
|
3×4mm2+(0～6)×(0.5～1.0)mm2 |
2.8 |
4.95 |
20A |
12.5 |
TBD |
|
3×6mm2+(0～6)×(0.5～1.0)mm2 |
3.2 |
3.3 |
32A |
13.3 |
TBD |
|
5×2.5mm2+(0～6)×(0.5～1.0)mm2 |
2.1 |
7.98 |
16A |
13.3 |
TBD |
|
5×4mm2+(0～6)×(0.5～1.0)mm2 |
2.8 |
4.95 |
20A |
15.5 |
TBD |
|
5×6mm2+(0～6)×(0.5～1.0)mm2 |
3.2 |
3.3 |
32A |
16.5 |
TBD |
|
产品的具体参数以技术图纸为准(上表中的完成外径为1根0.75mm2信号线的外径)。 The specific parameters of product should be according to technical drawings. |
||||||
TUV认证IEC62893直流充电电缆
参考标准：IEC62893-4-1:2020
证书号 R 50438281 0001
型号 规格 导体绞合外径 导体电阻 参考允载电流 无屏蔽完成外径 包装 62893 IEC 126 2×10+10+P(2×0.75)+4×0.5 4.5 1.91 40A 15.5 300m/950# 2×16+16+P(2×0.75)+4×0.5 5.7 1.21 63A 18 300m/950# 2×25+16+P(2×0.75)+4×0.5 7.1 0.78 100A 24.5 300m/950# 2×35+16+P(2×0.75)+4×0.5 8.4 0.554 125A 25.8 300m/950# 2×50+25+P(2×0.75)+4×0.5 10.2 0.386 150A/200A 30.2 400m/1200# 2×70+35+P(2×0.75)+4×0.5 12.0 0.272 200A/250A 34.7 400m/1200# 4×50+50+6×0.75 19.0 0.75 300A/350A 37.5 400m/1200# 规格为2芯电源线4mm~95mm，1芯PE线4mm~50mm，辅助电源线为2芯2.5~6.0mm（可选）可以增加0~12芯0.5mm~1.0mm的信号线，可以信号线屏蔽或总缆屏蔽，产品的具体参数以技术图纸为准。 Specifications: 2-core power cable 4mm to 95mm, 1-core PE cable 4mm to 50mm, 2-core auxiliary power cable 2.5 mm to 6.0mm (optional) 0-12 core signal cable 0.5mm to 1.0mm can be added, the signal cable can be shielded or the main cable can be shielded. Specific product parameters shall be subject to the technical drawings..
