日本PSE认证HVCT型电动汽车充电电缆
参考标准：JIS C 3312
証明書番号（声明编号）：PSE23012360
产品说明：

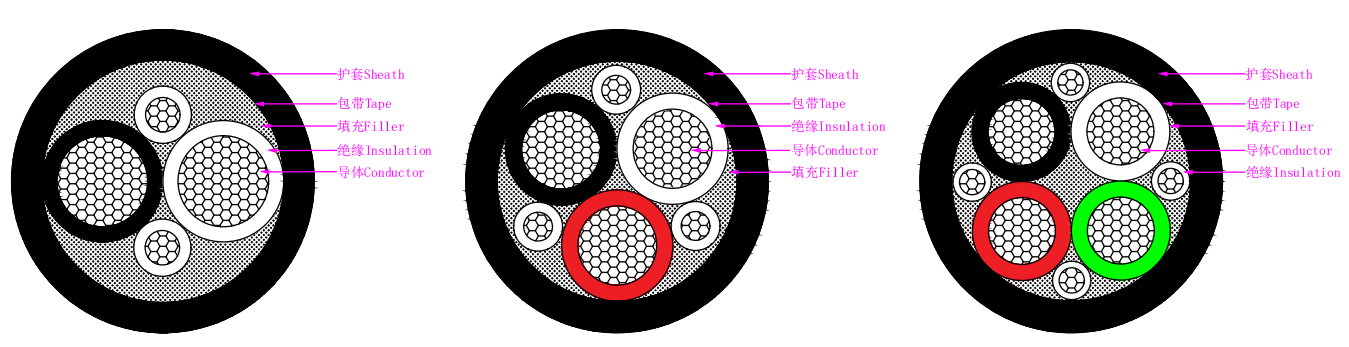

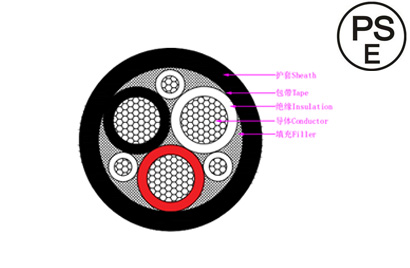

| Construction | Features |
| 1.Conductor | Ambient Temperature ：-40℃～90℃ |
| Material: Bare Copper | Rated Voltage ： ≤600V AC , ≤750V DC |
| 2.Insulation | Tensile Strength ：Insulation＞10MPa，after Aging Test（100℃*48H）＞85% |
| Material: PVC | Sheath＞10MPa，after Aging Test（100℃*48H）＞85% |
| Color：Black, White, Red, Green | Elongation at break ： Insulation＞100%，after Aging Test（100℃*48H）＞80% |
| 3.Filler | Sheath＞120%，after Aging Test（100℃*48H）＞80% |
| Material: PP linen yarn or cotton yarn | Thermal Deformation ：Thickness reduction <50% |
| 4.Tape | Bending Radius ：≥6 OD |
| Material:Non-woven fabrics | Flame Retardant Test：Naturally extinguished within 30 seconds |
| 5.Sheath | The flame must be extinguished naturally within 30s |
| Material: PVC | |
| Color: Black |
规格范围：HVCT (2~5cores)1.25mm2~8mm2+(0~6cores)0.75mm2~2mm2
