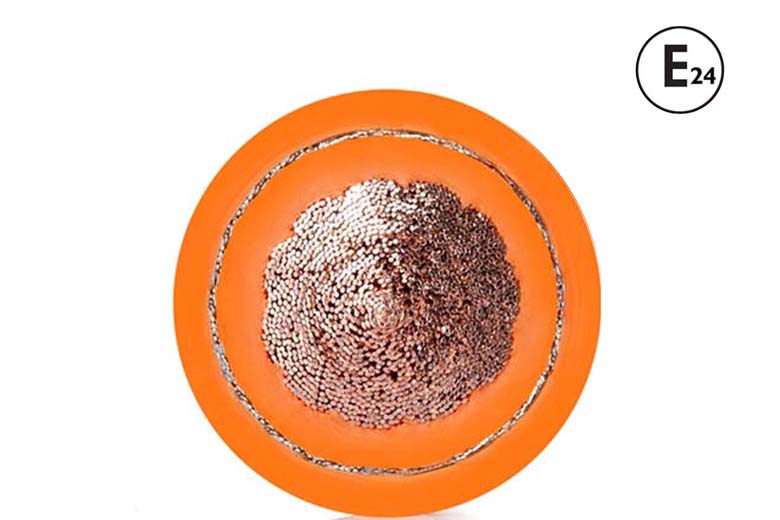

UL758高压电缆

电器设备用装置线AC 1000VAC 1500V   (Appliance Wiring Material for AC 1000V and AC 1500V)

参考标准Reference Standard:  UL 758、UL3820、UL3886、UL30088

UL证书编号Certificate number E323711

E-MARK批准号Approval No: E24*118R03/01*0375*00

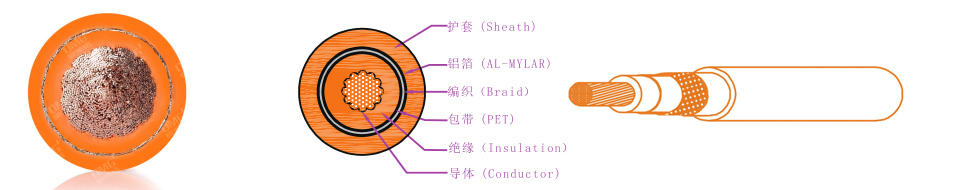

产品描述 Product description:

 结构Construction  电缆特性Features
 1、导体Conductor1  1、额定温度Rated Temperature: -40℃-+125℃
      材质Material: 裸铜Bare Copper  2、额定电压Rated Voltage:Optional 1000V AC or 1500V AC
 2、绝缘Insulation  3、老化试验Aging:158℃*168h,comply with UL 758
      材质Material: XLPE  4、耐压试验Dielectric Voltage:3000V AC*1min
      颜色Color:橙色Orange   5、热变形试验Deformation Test: 121℃*4h,comply with UL 758
 3、屏蔽Shielded  6、燃烧试验Flame Test:  VW-1,comply with UL 758
      材质Material:镀锡铜Tinned Copper    7、冷弯试验Cold Bend Test:-40℃*4h,comply with UL 758
 4、护套Sheath  8、环保要求Environmental Requirements:    Compliant with RoHS 2.0 and REACH
      材质Material: XLPE  9、抗撕裂性能Anti-tear Performance :>20N/mm
      颜色Color:橙色Orange   10、最小弯曲半径Min Bending Radius:    4*OD

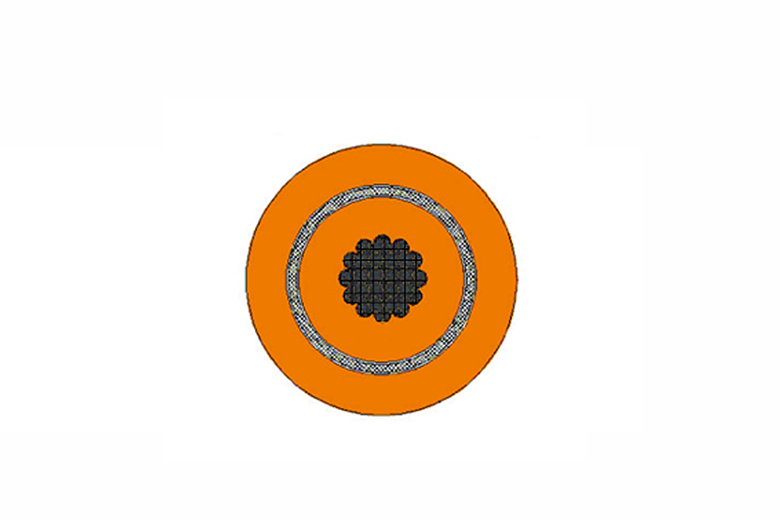

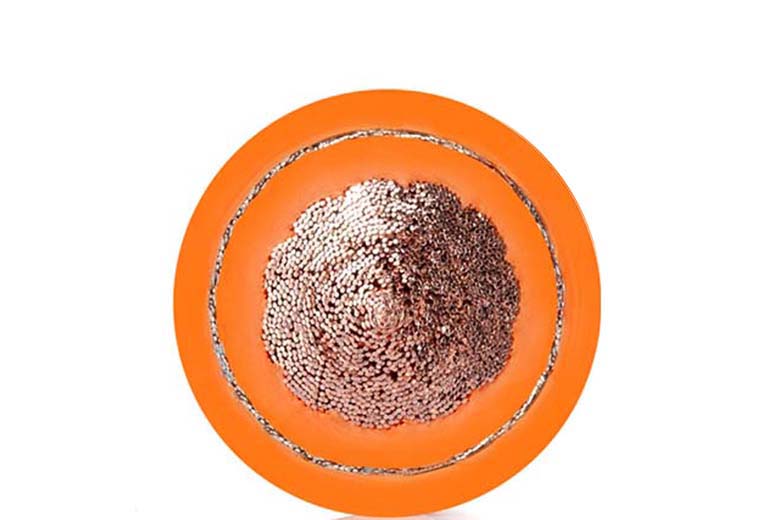

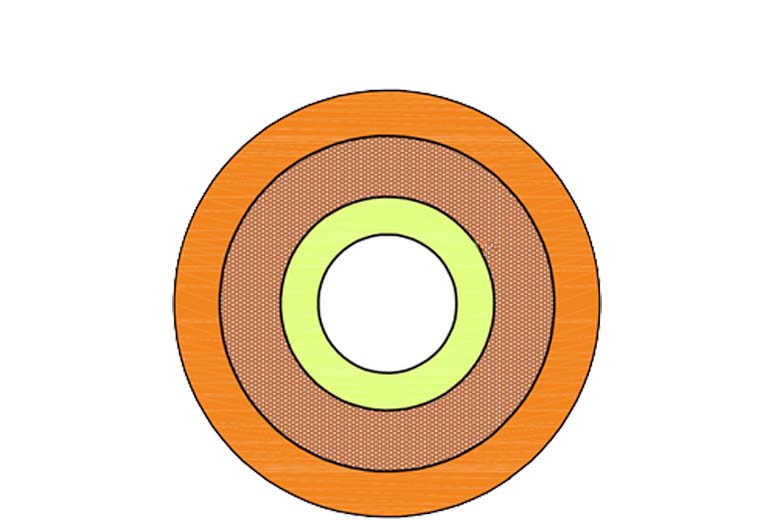

单芯屏蔽线缆Single core shielded cable)

屏蔽新能源汽车高压电缆

产品系列

Product Series

规格

Size

导体绞合外径

Conductor Stranded OD mm ( Ref.)

导体电阻

Max. Conductor resistance

mΩ/m@20

参考允载电流

Permissible ampacity

A (Ref.)

完成外径

Over diameter

mm (Ref.)

UL 30088 for 1000V

16AWG

1.5

14.1

15

5.6

15AWG

1.7

11.2

20

5.7

14AWG

1.9

8.88

24

5.8

13AWG

2.1

7.02

28

5.8

12AWG

2.8

5.58

34

6.7

11AWG

3.0

4.43

39

6.9

10AWG

3.3

3.51

45

7.2

9AWG

3.7

2.78

53

7.6

8AWG

4.2

2.23

64

8.8

7AWG

4.8

1.77

75

9.4

6AWG

5.4

1.40

85

10.0

5AWG

6.0

1.11

100

12.1

4AWG

6.6

0.882

115

12.2

3AWG

7.4

0.7

135

13.0

2AWG

8.4

0.555

160

13.6

1AWG

9.4

0.44

175

15.0

以上产品规格、尺寸、结构可能因为技术进步而有所改变,同类规格可根据客户使用需求进行设计制造。

The specification, size, structure of above product may be changed  due toTechnical progress, similar specifications are available according to customer’s  requirements

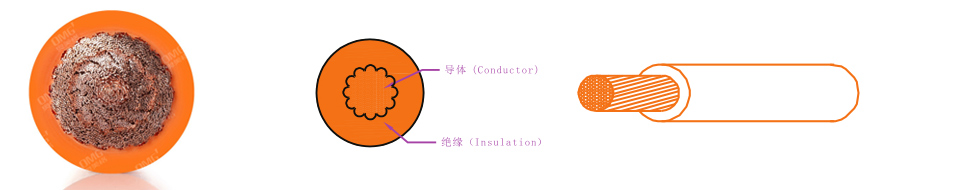

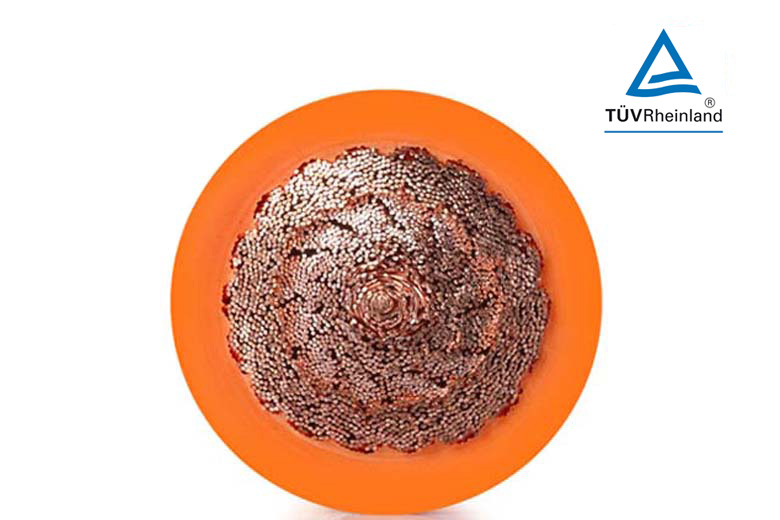

单芯非屏蔽线缆Single core unshielded cable)

非屏蔽新能源汽车高压电缆



产品系列

Product Series

规格

Size

导体绞合外径

Conductor Stranded OD mm ( Ref.)

导体电阻

Max. Conductor resistance

mΩ/m@20

参考允载电流

Permissible ampacity

A (Ref.)

完成外径

Over diameter

mm (Ref.)

UL 3820 for 1000V

UL 3886 for 1500V

16AWG

1.5

14.1

15

3.4

15AWG

1.7

11.2

20

3.5

14AWG

1.9

8.88

24

3.6

13AWG

2.1

7.02

28

3.8

12AWG

2.8

5.58

34

4.5

11AWG

3.0

4.43

39

4.7

10AWG

3.3

3.51

45

5.0

9AWG

3.7

2.78

53

5.4

8AWG

4.2

2.23

64

6.6

7AWG

4.8

1.77

75

7.2

6AWG

5.4

1.40

85

7.8

5AWG

6.0

1.11

100

8.4

4AWG

6.6

0.882

115

9.0

3AWG

7.4

0.7

135

9.4

2AWG

8.4

0.555

160

10.8

1AWG

9.4

0.44

175

12.4

以上产品规格、尺寸、结构可能因为技术进步而有所改变,同类规格可根据客户使用需求进行设计制造。

The specification, size, structure of above product may be changed  due toTechnical progress, similar specifications are available according to customer’s  requirements



相关产品推荐

交流发光充电电缆

交流发光充电电缆

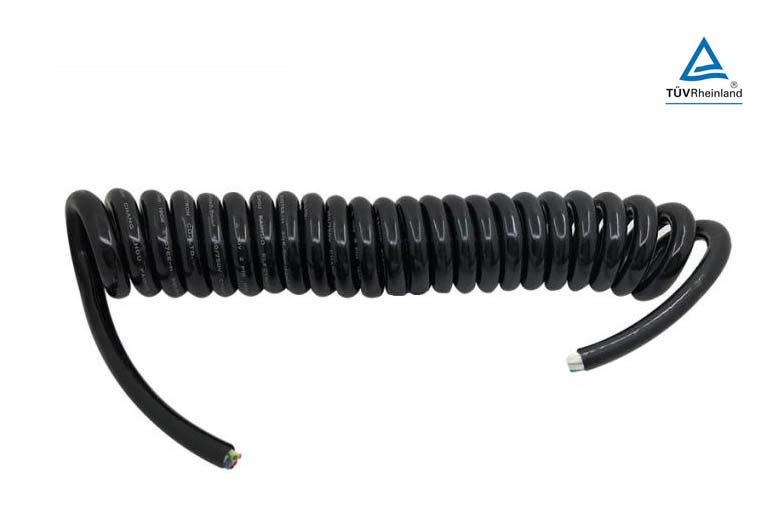

交流弹簧充电电缆

交流弹簧充电电缆

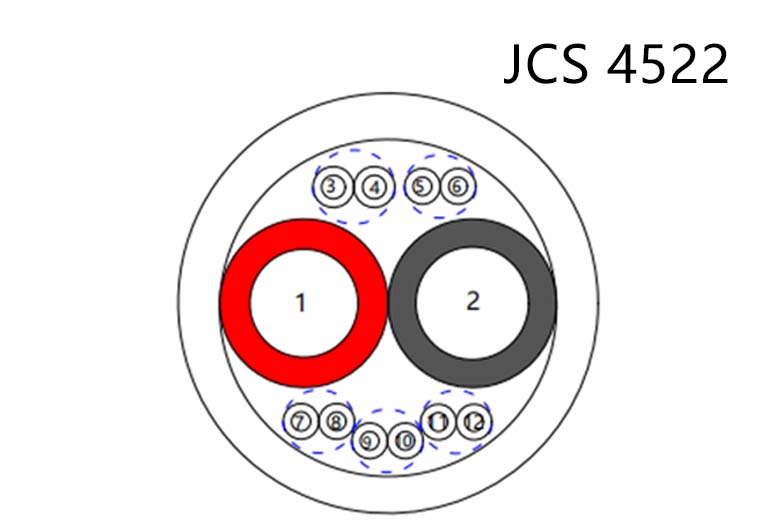

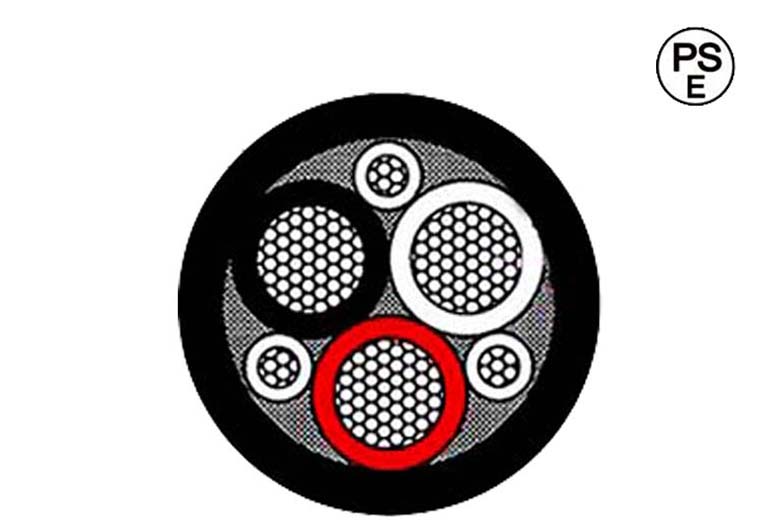

日本JCS 4522充电电缆

日本JCS 4522充电电缆

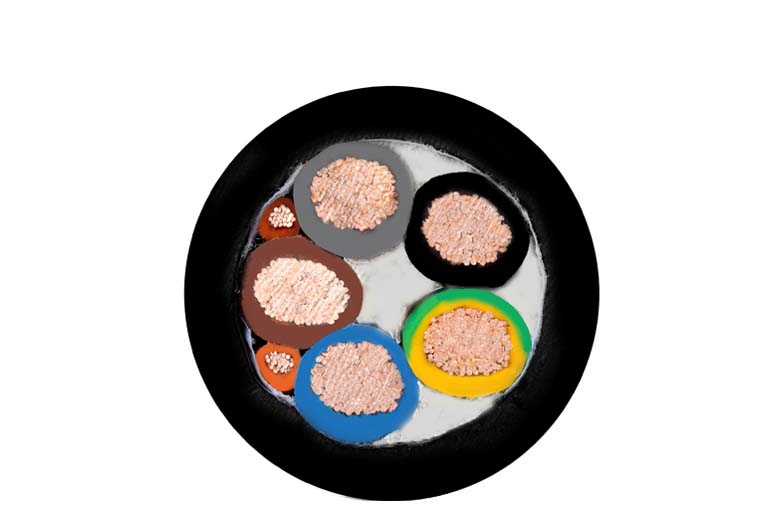

欧州EN、IEC标准充电电缆

欧州EN、IEC标准充电电缆

屏蔽电缆

屏蔽电缆

非屏蔽电缆

非屏蔽电缆

美洲UL认证充电电缆

美洲UL认证充电电缆

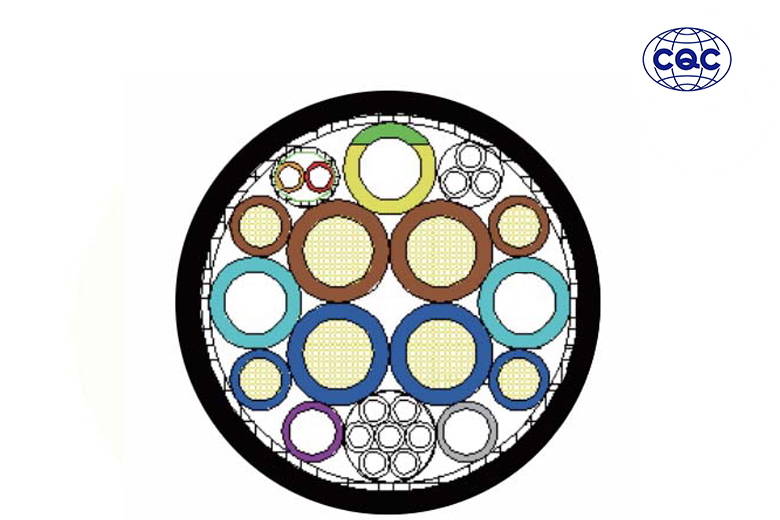

新国标交流充电电缆
